Product Introduction

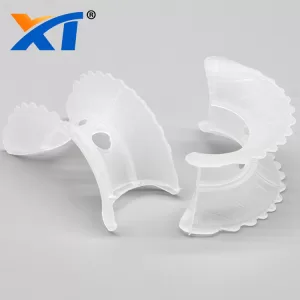

Plastic pall ring is made from heat resistant and chemical corrosion resistant plastics. It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.
Technical Parameter:
| Model | Pall Ring | |||||
| Material | PP, RPP, PE, PVC, CPVC, PVDF, etc. | |||||
| Spec of PP Pall Ring | D*H*T | Number per m3 | Bulk density | Surface area | Free volume | F factor |
| (mm) | PCS | (kg/m3) | (m2/m3) | (%) | (m-1) | |
| Dg16 | 16*16*1.1 | 112000 | 141 | 274 | 91 | 249 |
| Dg25 | 25*25*1.2 | 53500 | 150 | 175 | 90 | 239 |
| Dg38 | 38*38*1.4 | 15800 | 98 | 115 | 89 | 220 |
| Dg50 | 50*50*1.5 | 6500 | 74.8 | 112 | 90 | 154 |
| Dg76 | 76*76*2.6 | 1930 | 70.9 | 73 | 92 | 94 |
| Advantages: | High Free Volume; Low Pressure Drop; Low Mass-Transfer Unit Height; High Flooding Point; Small Specific Gravity; High Mass Transfer; Uniform Gass-Liquid Contact; Lightweight Construction; Towerr Packing. | |||||
| Typical Application | 1. Absorption; 2. Scrubbing; 3. Stripping services; 4. All kinds of Seperation; 5. Plastic Packed Columns; 6. Cooling Tower Packing | |||||
