PRODUCT PARAMETERS
Description
Specific Application：
PSA nitrogen system, petroleum chemical industry, heat treatment of metal, electronic manufacture and food preservation industries.
Product description:
Guangdong Xintao Carbon Molecular Sieve CMS-330 is a new type of carbon molecular sieve developed on the basis of CMS-280. Through the overall improvement of production process , the adsorbent could be more stable , more efficient , more energy conservation and environmental protection. Xintao CMS-330 has been far more than the industry level in China market, and in the leading level of the world. It produces 99.999% concentration nitrogen more economical via PSA method.
Technical Parameter
| Model | Carbon Molecular Sieve | |||

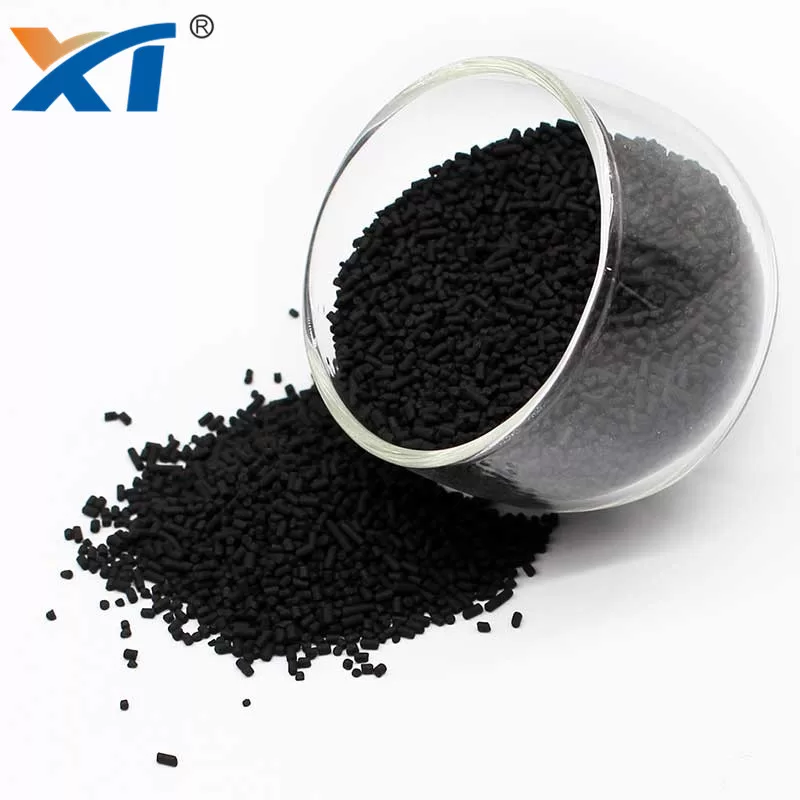

| Appearance | Black, extruded(pellet) | |||
| Nominal pore diameter | 4 angstroms | |||
| Bulk Density | 650-690 KG/M3 | |||
| Dust level | 100PPM Max | |||
| Adsorbent time (S)
(The test temperature≤20℃) |
2*50(can be adjusted) | |||
| Diameter (mm) | 0.9-1.1,1.1-1.3 | 1.3-1.5 | 1.5-1.8 | 1.8-2.0 |
| Crushing Strength (N/pc) | 50-60 | 60-70 | 70-80 | 80-100 |
| Production Output | Data as follows | 3-8% loss | 5-15% loss | 10-20% loss |
| The following test data is based on the adsorption pressure of 8 bar and at the temperature of 20℃. The best inlet air temperature for Carbon Molecular Sieve is 0℃~20℃. The data sheet below is tested under the temperature below 20℃. |
||||
| Type | Adsorption Pressure (MPa) | N2 Purity(%) | N2 quantity (M3/T.MT) | Air/N2 (%) |
| CMS-330 | 0.75-0.8 | 99.999 | 100 | 5.8 |
| 99.99 | 160 | 4.6 | ||
| 99.9 | 255 | 3.0 | ||
| 99.5 | 330 |
2.6 | ||
[Carbon Molecular Sieve (CMS) for Industrial Nitrogen Generators – Direct Manufacturer]
We are a specialized manufacturer of Carbon Molecular Sieve (CMS), offering direct wholesale of high-quality adsorbents designed specifically for industrial nitrogen generators. Our CMS products strictly comply with the national standard HG/T 4364-2020. Tailored for PSA (Pressure Swing Adsorption) nitrogen generators, these sieves utilize the kinetic differences in diffusion rates between oxygen and nitrogen molecules within micropores to achieve highly efficient nitrogen-oxygen separation. Key features include high adsorption capacity, high compressive strength, high product purity, and a long service life, enabling the stable production of nitrogen with purities ranging from 95% to 99.999%. They are widely used in sectors such as food preservation, chemical explosion prevention, electronics manufacturing, and metal heat treatment. We offer free samples for testing, professional technical consultation, and on-site services for inspection, installation, and CMS replacement. Documentation provided includes MSDS reports, factory inspection reports, and third-party/export certification (e.g., SGS). With ample production capacity, we welcome inquiries and orders from B2B buyers.
