PRODUCT PARAMETERS
Description
Product Introduction

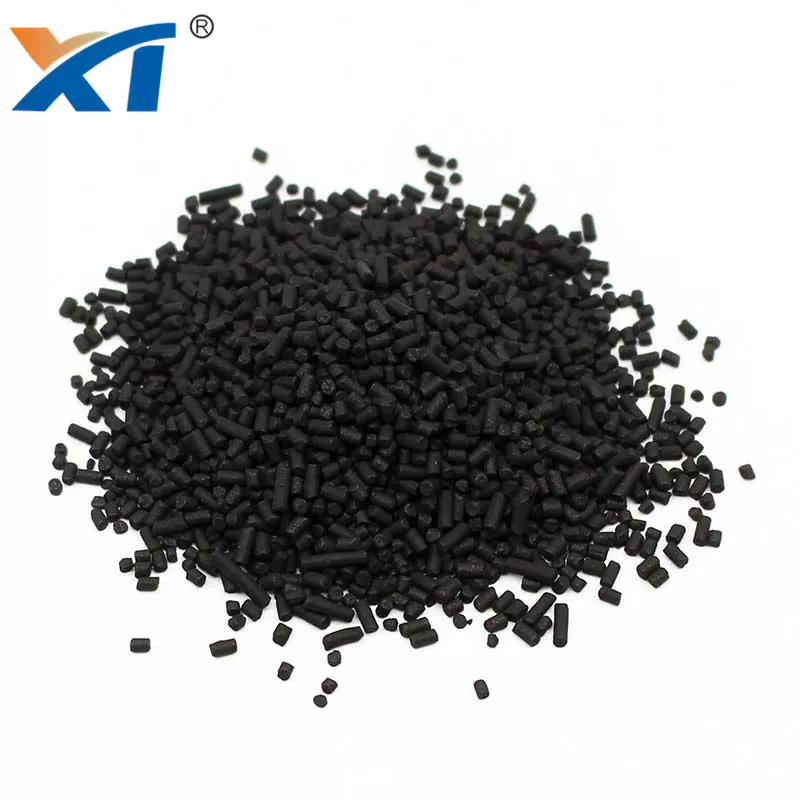

Guangdong Xintao CMS takes the appearance of cylindrical black solid, contains countless 4 angstrom fine pores. It can be used to separate air into nitrogen and oxygen. In industry, CMS can concentrate nitrogen from air with PSA systems, the nitrogen(N2) purity up to 99.999%. Our CMS products have the character of large nitrogen yield capacity; high nitrogen recovery. It can meet the requirement of all types of PSA nitrogen systems. The carbon molecular sieve is widely applied in petroleum chemical industry, the heat treatment of metal, the electronic manufacture and food preservation industries.
Specific Application：
PSA nitrogen system, petroleum chemical industry, heat treatment of metal, electronic manufacture and food preservation industries.
Technical Parameter:
| Model | Carbon Molecular Sieve | |||
| Appearance | Black, extruded(pellet) | |||
| Nominal pore diameter | 4 angstroms | |||
| Bulk Density | 630-680 KG/M3 | |||
| Dust level | 100PPM Max | |||
|
Adsorbent time (S) (The test temperature≤20℃) |
2*50(can be adjusted) | |||
| Diameter (mm) | 0.9-1.1,1.1-1.3 | 1.3-1.5 | 1.5-1.8 | 1.8-2.0 |
| Crushing Strength (N/pc) | 50-60 | 60-70 | 70-80 | 80-100 |
| Production Output | Data as follows | 3-8% loss | 5-15% loss | 10-20% loss |
| The following test data is based on the adsorption pressure of 8 bar and at the temperature of 20℃. The best inlet air temperature for Carbon Molecular Sieve is 0℃~20℃. The data sheet below is tested under the temperature below 20℃. |
||||
| Type |
Adsorption Pressure (MPa) |
N2 Purity(%) |
N2 quantity (M3/T.MT) |
Air/N2 (%) |
| CMS-280 |
0.75-0.8 |
99.999 | 90 | 6.4 |
| 99.99 | 135 | 4.5 | ||
| 99.9 | 190 | 3.4 | ||
| 99.5 | 280 | 2.8 | ||
| 99 | 335 | 2.2 | ||
| 98 | 365 | 2.1 | ||
| 97 | 410 | 2.0 | ||
| CMS-260 |
0.75-0.8 |
99.999 | 75 | 6.5 |
| 99.99 | 120 | 4.6 | ||
| 99.9 | 175 | 3.4 | ||
| 99.5 | 260 | 2.9 | ||
| 99 | 320 | 2.2 | ||
| 98 | 350 | 2.1 | ||
| 97 | 390 | 2.0 | ||
| CMS-240 |
0.75-0.8 |
99.999 | 65 | 6.6 |
| 99.99 | 110 | 4.6 | ||
| 99.9 | 160 | 3.5 | ||
| 99.5 | 240 | 3.0 | ||
| 99 | 280 | 2.3 | ||
| 98 | 320 | 2.2 | ||
| 97 | 360 | 2.1 | ||
| CMS-220 |
0.75-0.8 |
99.999 | 55 | 6.8 |
| 99.99 | 100 | 4.8 | ||
| 99.9 | 145 | 3.7 | ||
| 99.5 | 220 | 3.1 | ||
| 99 | 260 | 2.4 | ||
[Carbon Molecular Sieve (CMS) for Industrial Nitrogen Generators – Direct Manufacturer]
We are a specialized manufacturer of Carbon Molecular Sieve (CMS), offering direct wholesale of high-quality adsorbents designed specifically for industrial nitrogen generators. Our CMS products strictly comply with the national standard HG/T 4364-2020. Tailored for PSA (Pressure Swing Adsorption) nitrogen generators, these sieves utilize the kinetic differences in diffusion rates between oxygen and nitrogen molecules within micropores to achieve highly efficient nitrogen-oxygen separation. Key features include high adsorption capacity, high compressive strength, high product purity, and a long service life, enabling the stable production of nitrogen with purities ranging from 95% to 99.999%. They are widely used in sectors such as food preservation, chemical explosion prevention, electronics manufacturing, and metal heat treatment. We offer free samples for testing, professional technical consultation, and on-site services for inspection, installation, and CMS replacement. Documentation provided includes MSDS reports, factory inspection reports, and third-party/export certification (e.g., SGS). With ample production capacity, we welcome inquiries and orders from B2B buyers.
