Product Introduction

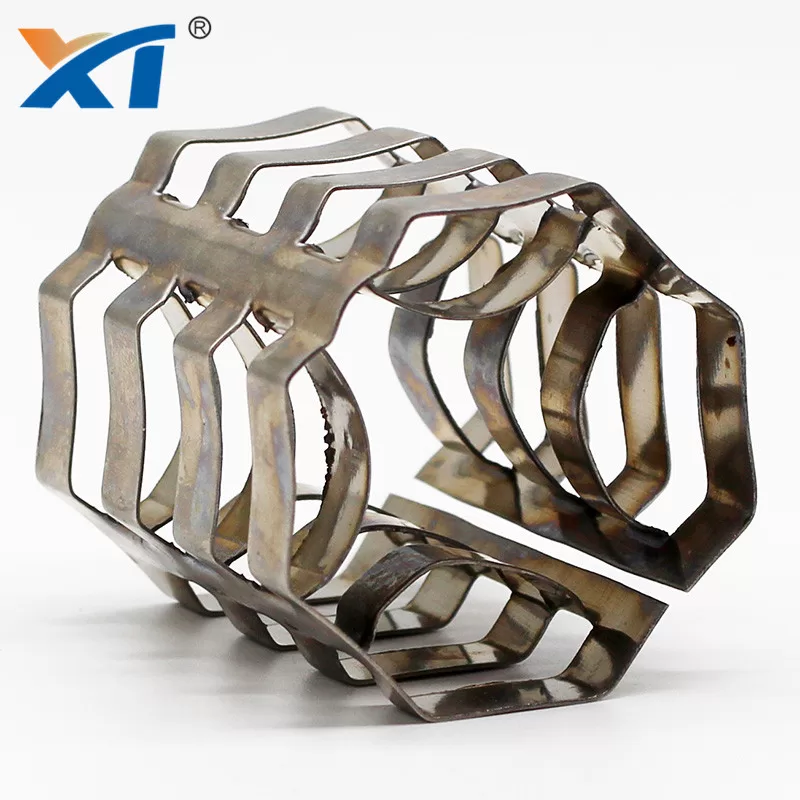

XINTAO Inner Arc Ring is equivalent of Metal VSP. During plant operation these rings create gas/liquid contact on easily wettable surfaces and promote the formation of droplets as the liquid cascades through the packed bed. This ensures good liquid mixing and consistent and uniform distribution. This open non-testing structure creates high efficiency and a very low pressure drop.
Technical Parameter:
| Model | Inner Arc Ring | |||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | |||
| Size | Bulk Density | Number per CBM | Surface Area | Free Volume |
| mm | (kg/m3) | pcs | (m2/m3) | % |
| 25 | 137 | 33500 | 207 | 97.5 |
| 38 | 102 | 7800 | 131 | 98 |
| Typical Application | Absorption, scrubbing and stripping services | |||
