Description
Product Introduction

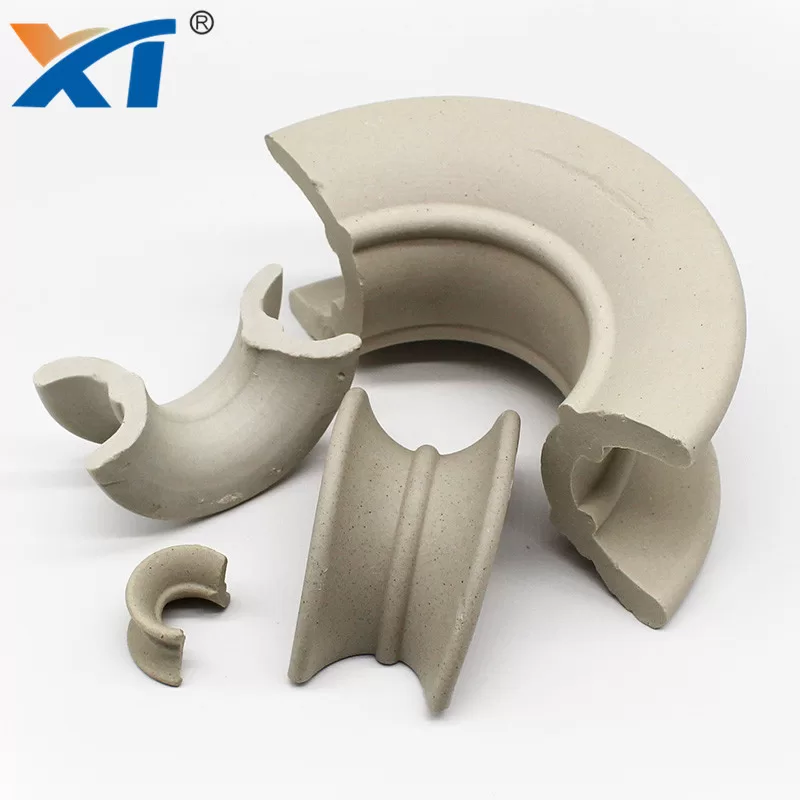

XINTAO Ceramic Intalox Saddles has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Technical Parameter:
|
Model: |
Ceramic Intalox Saddles |
||||
|
Diameter (inch) |
Diameter (mm) |
Approx. weight (kg/m3) |
Surface area |
Free volume (%) |
Packing factor (l/ft) |
|
1/2” |
12 |
720 |
623 |
71.7 |
200 |
|
3/4” |
19 |
688 |
334 |
73 |
130 |
|
1” |
25 |
688 |
253 |
73 |
85 |
|
1.5” |
38 |
640 |
164 |
75 |
50 |
|
2” |
50 |
577 |
115 |
77.4 |
37 |
|
3” |
76 |
623 |
92 |
75.5 |
24 |
|
Typical Application |
a)Have excellent resistance to acids except in the case of hydrofluoric acid. |
||||
