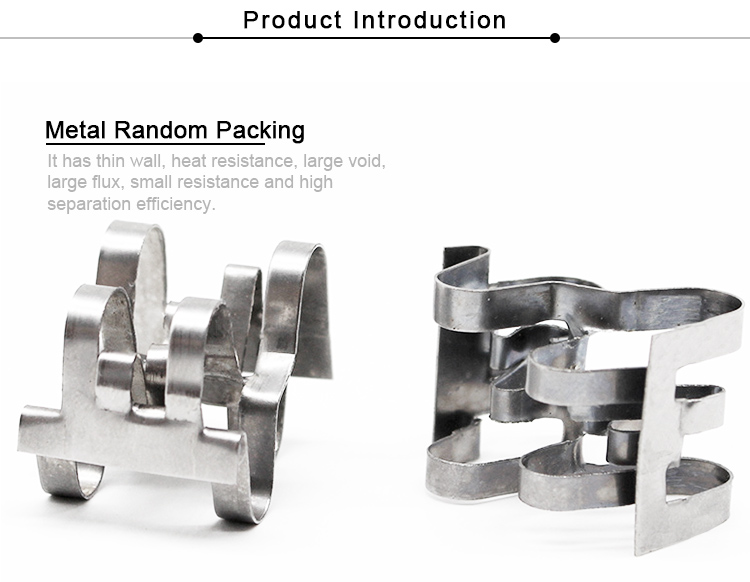

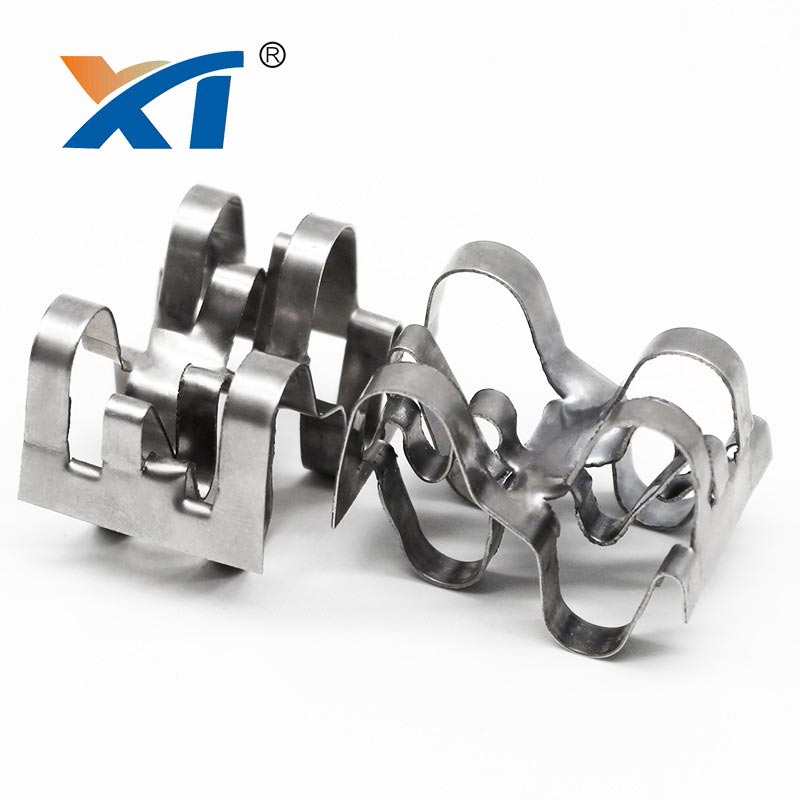

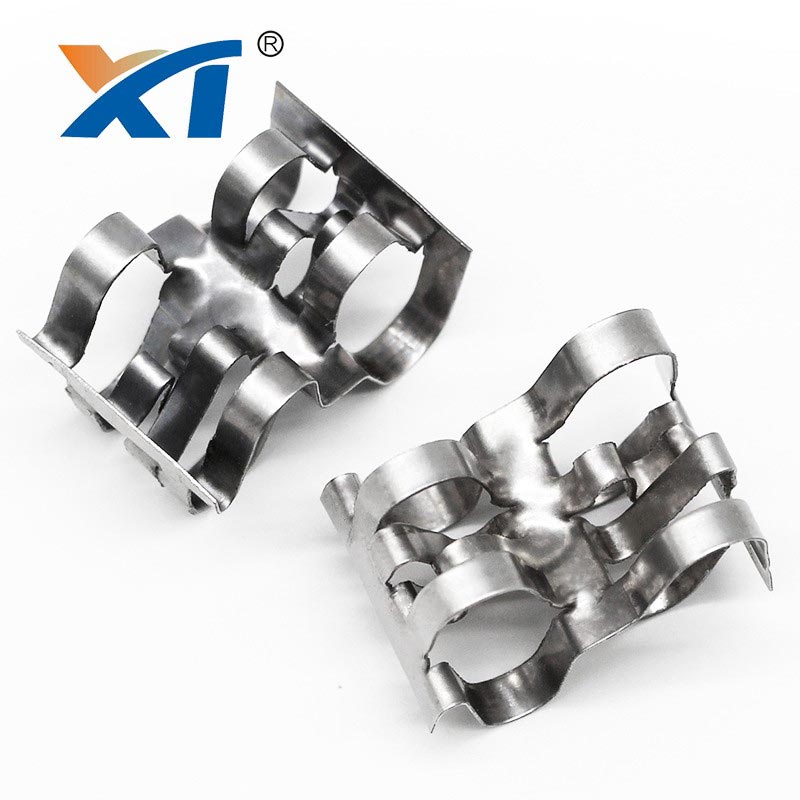

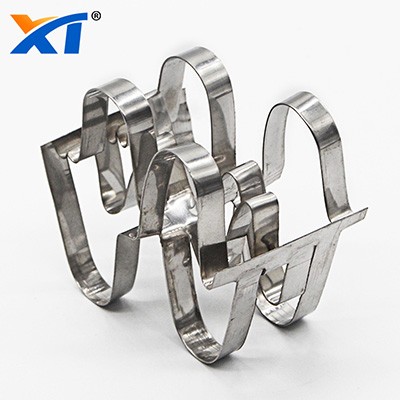

Metal Super Raschig Ring

The design of the Super Raschig Ring offers an optimal solution to industry's demands for a modern heavy-duty packing. Unlike previous packing shapes, the Super Raschig Ring avoids the droplet formation which is such a frequent interference accompanying large gas loads. The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packings by over 10%. It is suitable for various separation, absorption and desorption devices, atmospheric and vacuum equipment, synthetic ammonia decarburization, desulfurization system, ethyl stupid separation, isooctane / clumsy separation and so on.



XINTAO Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packings by over 10%. The design of the Super Raschig Ring offers an optimal solution to industry's demands for a modern heavy-duty packing.Raschig Super-Ring can be widely used in the packed tower of petrochemical, , fertilizer, environmental protection industries and so on. Especially suitable for vacuum distillation tower.

ModelSuper Raschig Ring
MaterialCarbon Steel; SS 304, 304L, 410, 316, 316L, etc.
Sizemm15202530385070
NO. perm318000014500032000320001310095004300
Surfacem2/m331525018015012010080
Free Volume%96979898989898
Typical ApplicationAbsorption, scrubbing and stripping services

Advantage:

1. High loading & throughput / low pressure drop, good liquid / gas distribution and high mass transfer efficiency

2. Versatility, easily wet table, high resistance to fouling, high temperature.

3. Mechanical strength of metal packing, high temperature applications,

4. Mechanically robust, lesser probability of breakage, suitable for deeper beds.
