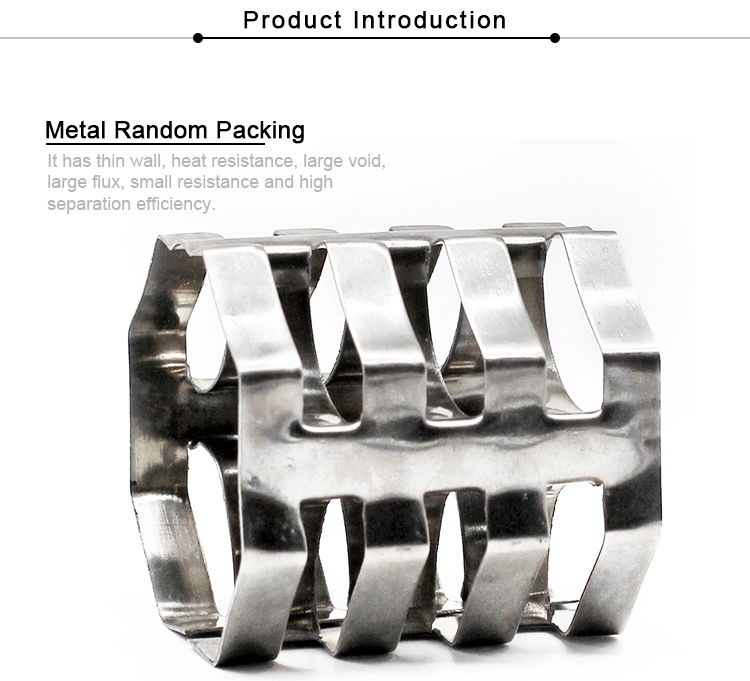

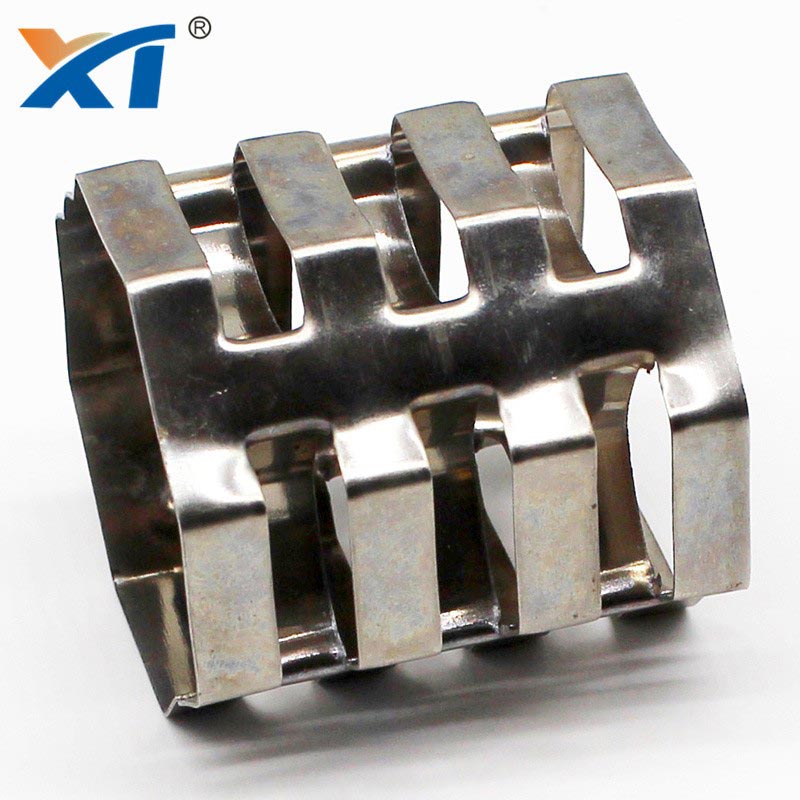

VSP metal inner arc ring

Material: Carbon Steel, SS304,304L,410,316,316L,etc
Bulk density: 102-137 kg/m3
Surface area: 131-207 m2/m3
Bulk Number: 7800-33500 pcs/m3



XINTAO Inner Arc Ring is equivalent of Metal VSP. During plant operation these rings create gas/liquid contact on easily wettable surfaces and promote the formation of droplets as the liquid cascades through the packed bed. This ensures good liquid mixing and consistent and uniform distribution. This open non-testing structure creates high efficiency and a very low pressure drop.

Technical data:

ModelInner Arc Ring
MaterialCarbon Steel; SS 304, 304L, 410, 316, 316L, etc.
SizeBulk DensityNumber per CBMSurface AreaFree Volume
mm(kg/m3)pcs(m2/m3)%
251373350020797.5
38102780013198
Typical ApplicationAbsorption, scrubbing and stripping services
