Plastic Intalox Saddles

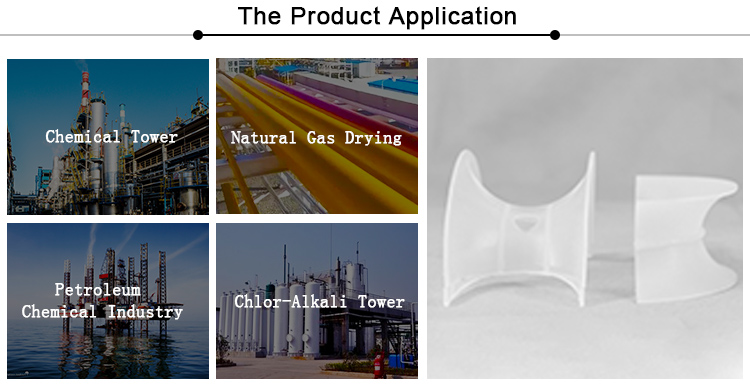

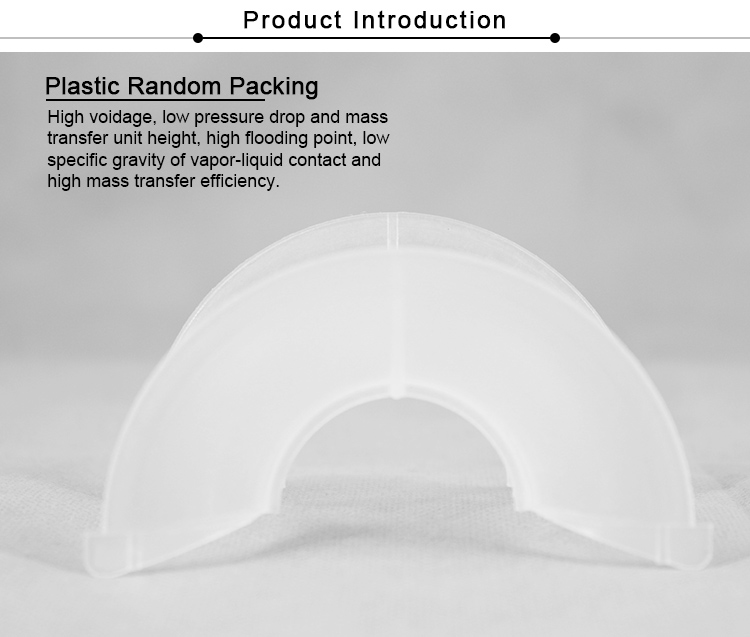

Plastic intalox saddle is made from heat resistant and chemical corrosion resistant plastics, including polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chloridized polyvinyl chloride (CPVC) and polyvinylidene fluoride (PVDF). It has features such as high free volume, low pressure drop, low mass-transfer unit height, high flooding point, uniform gas-liquid contact, small specific gravity, high mass transfer efficiency and so on, and the application temperature in media ranges from 60to 150. For these reasons it is widely used in the packing towers in petroleum industry, chemical industry, alkali-Chloride industry, coal gas industry and environmental protection, etc.


Technical Parameter:

ModelIntalox Saddles Ring
MaterialPP,RPP,PE,PVC,CPVC,PVDF, etc.
D*H*TNumber per m³Bulk densitySurface areaFree volumeF factor

(mm)

PCS(kg/m³)(m²/m³)(%)(m-1)
25*12.5*1.29768010228884.7473
38*19*1.2252006326595405
50*25*1.5940075.225096332
76*38*2.6370059.220097289
