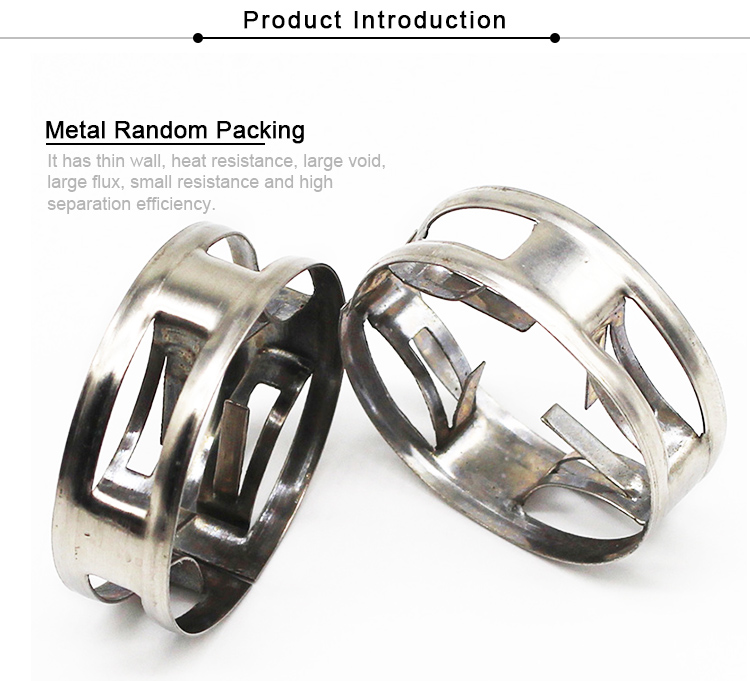

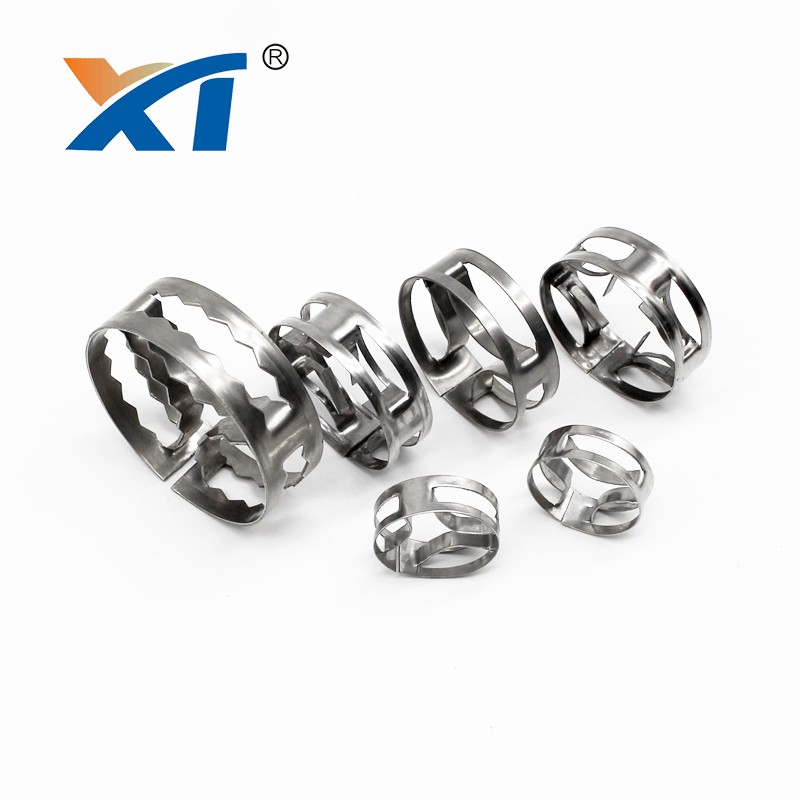

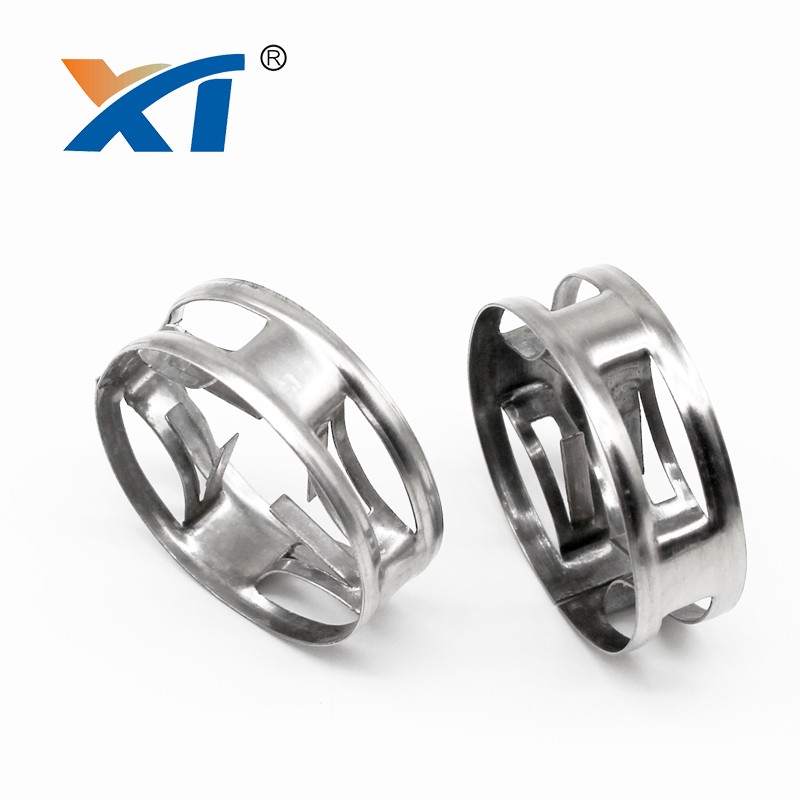

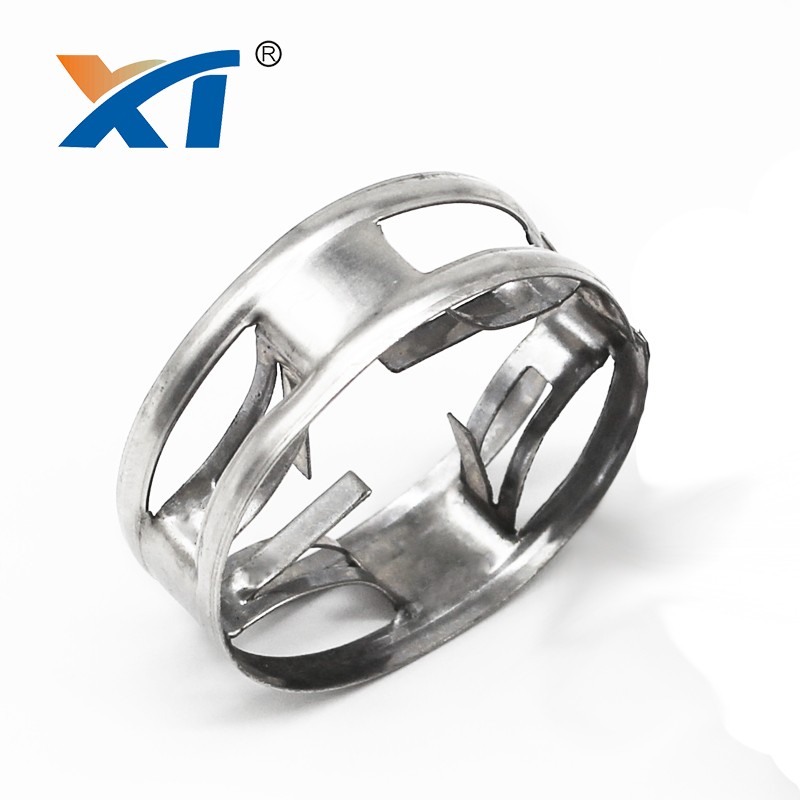

Metal Super Mini Ring (SMR) is always thought as the shorter cascade mini ring, because Super Mini Ring has the similar shape of cascade mini ring without top turn-ups. It also can be called as Metal flat ring. Guangdong Xintao Metal Super Mini Ring’s flat ring bent arc reinforced angle characteristics make less fluid resistance, and enlarge liquid & gas contact on easily wet surfaces. XINTAO Metal Super Mini Ring (metal flat ring) has which has improved the packing of the hydrodynamics and mass transfer. Its performance is better than pall ring, as the axial mixing is small, the mass transfer effects may be increased by 20% or more. This kind of metal random packing can applied to gas-liquid mass transfer process.
Model | Super Mini Ring | ||||||
Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | ||||||
Size | 16mm | 25mm | 38mm | 50mm | 75mm | The data based on SS304 material | |
Dimension | (mm) | 16×5.5×0.6 | 25×9×0.6 | 38×12.7×0.8 | 50×17×0.8 | 75×27×1.0 | |
Surface area | m2/m3 | 348 | 228 | 150 | 120 | 70 | |
Void space | % | 92.3 | 93.6 | 95 | 96.5 | 98.5 | |
Bulk density | kg/m3 | 460 | 485 | 437 | 346 | 264 | |
Number | per/m3 | 37800 | 155000 | 48000 | 21500 | 5800 | |
Packing factor | m-1 | 335 | 280 | 175 | 156 | 90.2 | |
Typical Application | Absorption, scrubbing and stripping services |
Large flux, low pressure drop, mass transfer efficiency, operating flexibility
Professional Manufacturer of Metal Super Mini Ring.
Material: 304, 304L, 410,316, 316L, etc.
Size: 16mm, 25mm, 38mm, 50mm, 76mm.
