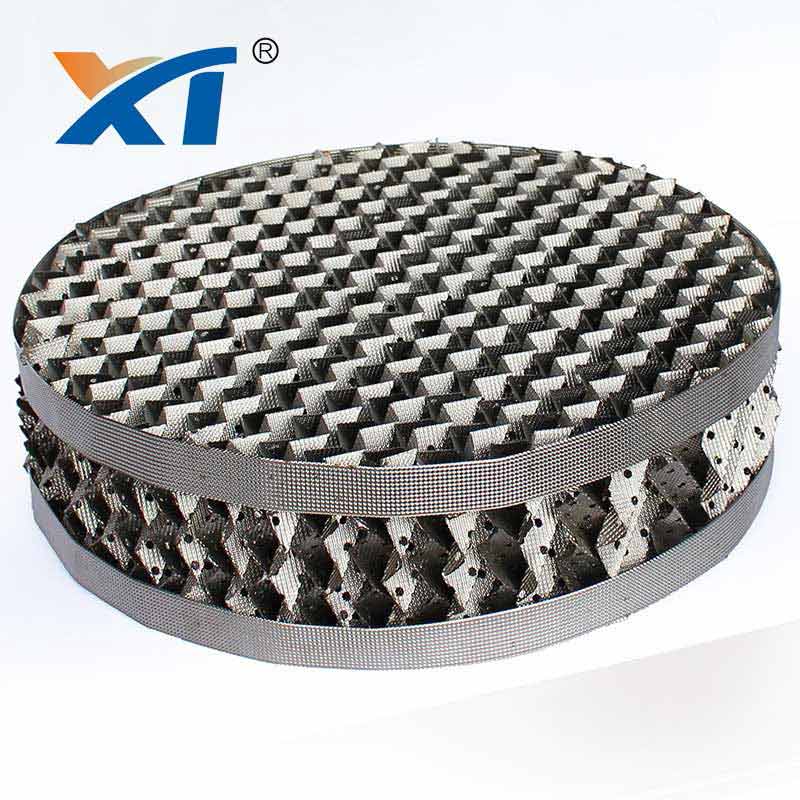

Metal Perforated Plate Corrugated Packing

Specific Application：
Absorption, scrubbing and stripping services

Summary：
Metal perforated plate corrugated packing is available in a wide range of materials, include stainless steels, 304, 316, 316L,

Metal structured packing typically consists of metallic wires and corrugated metallic sheets, which at uniform geometry arranged and neatly piled in the tower. It is widely used in the reactors in fine chemical industry, petrochemical industry, and fertilizer industry as mass transfer media and often used in difficult separation and the vacuum distillation of heat content, atmospheric distillation and absorption process.

Technical Parameter

Model		Perforated Plate Corrugated Packing
Material		SS 304, 304L, 410, 316, 316L, etc.
Model		125Y	250Y	350Y	500Y	125X	250X	350X	500X
Specific surface	(m2/m3)	125	250	350	500	125	250	350	500
Bulk density	(kg/m3)	100	200	280	360	100	200	280	360
Void ratio	(%)	98	97	94	92	98	97	94	92
Obl.	angle	45°	45°	45°	45°	30°	30°	30°	30°
P	(Pa/plate)	200	300	350	400	140	180	230	280
Theo. plate	(piece/m)	1~1.2	2~2.5	3.5~4	4~4.5	0.8~0.9	1.6~2	2.3~2.8	2.8~3.2

Typical Application		Absorption, scrubbing and stripping services

Package :		Carton box;
M.O.Q:		1 CBM
Payment Terms:		T/T; L/C; PayPal; West Union
Warranty:		a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995
Warranty:		b) Offer lifetime consultation on problems occurred

Container		20GP	40GP	40HQ	Normal order		Minimum Order		Sample order
Quantity		25 CBM	54 CBM	68 CBM	<25 CBM		1 CBM		< 5 pcs
Delivery Time		7 days	14 days	20 days	7 Days		3 days		Stock
Comments:		Customized making is allowed.

Material

Metal perforated plate corrugated packing is available in a wide range of materials, include stainless steels, 304, 316, 316L, Carbonsteels. Aluminium, copper bronze etc. Further materials available on request.
