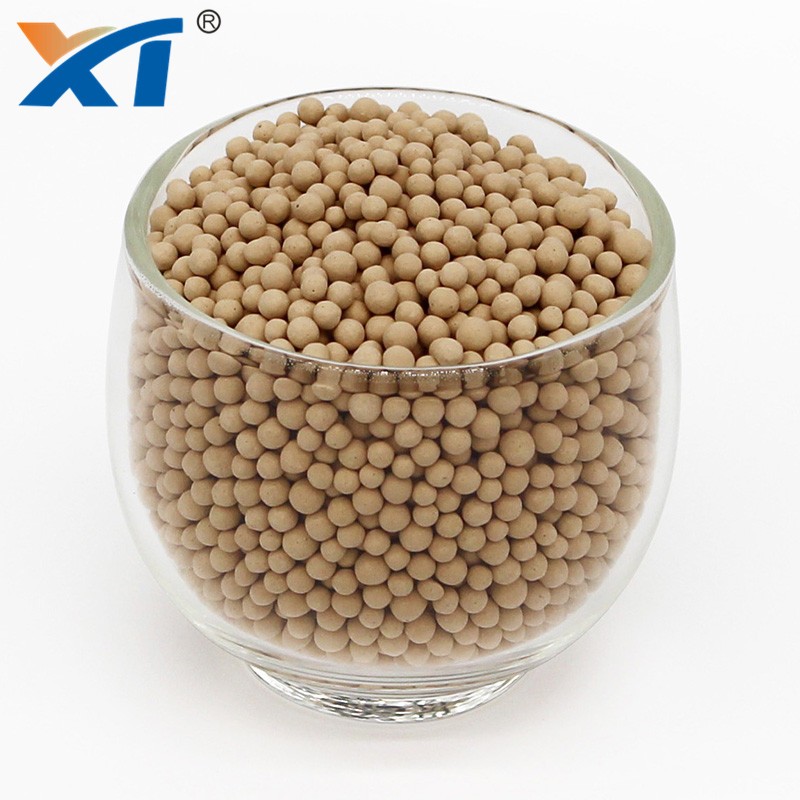

5A Molecular Sieve for PSA/VPSA Oxygen Generation is a calcium-sodium molecular sieve with a crystal pore size of 5Å. Used for pressure swing adsorption (PSA/VPSA) to separate nitrogen and oxygen from the air. It has the characteristics of high nitrogen adsorption capacity, fast adsorption speed, strong adsorption selectivity, more complete vacuum or atmospheric pressure desorption, high strength and low attrition.
Specific Application：
5A Molecular Sieve for PSA/VPSA Oxygen Generation is a calcium-sodium molecular sieve with a crystal pore size of 5Å. Used for pressure swing adsorption (PSA/VPSA) to separate nitrogen and oxygen from the air. It has the characteristics of high nitrogen adsorption capacity, fast adsorption speed, strong adsorption selectivity, more complete vacuum or atmospheric pressure desorption, high strength and low attrition.
| Model Number | 5a |
| Appearance | Sphere |
| Diameter | 1.6-2.5mm/ 8*12 (mesh) |
| Bulk density (g/ml) | 0.73～0.78 |
| Crushing strength (N/PC) | ≥35.0 |
| Static H2O adsorption (%)（@25℃ RH：75%） | ≥25.0 |
| Static N2 adsorption (%) | ≥10.8 |
| Static CO2 adsorption(%) | ≥18.0 |
| N2/O2 selectivity (a) | ≥3.2 |
| H2O content (%) | ≤1.0 |
| Wear ratio (%) | ≤0.30 |
Customer Case

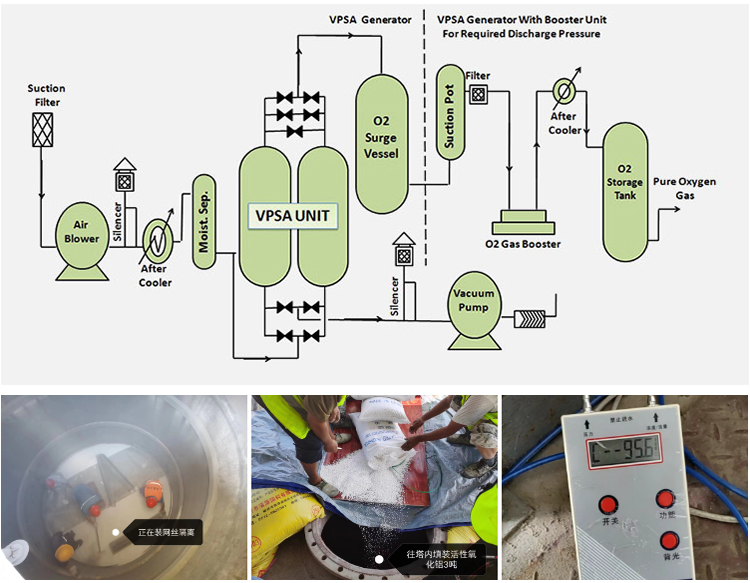

Installation case of 14 tons 5A oxygen molecular sieve and 3 tons activated alumina
